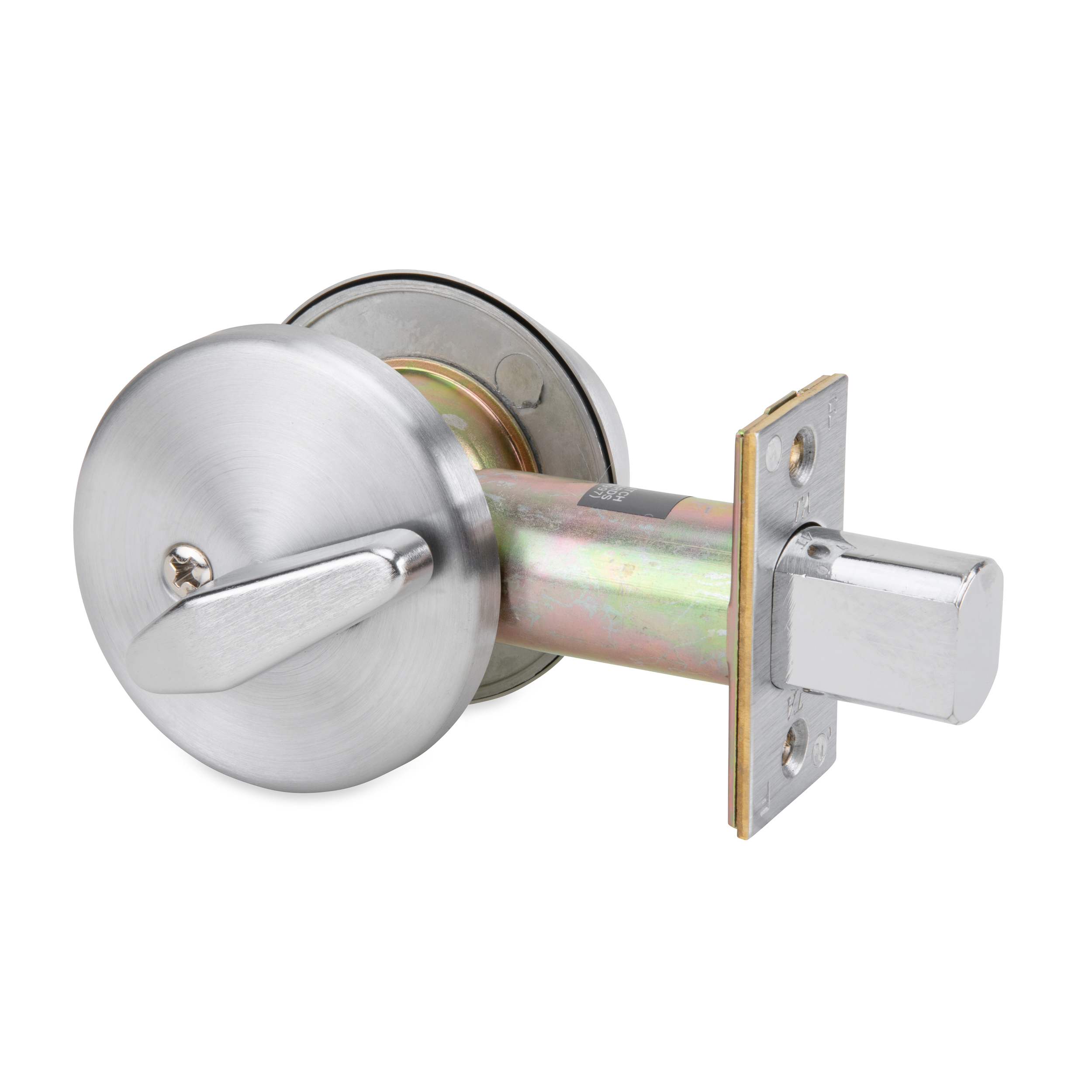

DB700 Series Grade 1 Deadbolts
The DB700 Series Grade 1 Deadbolts provide heavy-duty commercial security with durable construction and reliable locking performance.
Browse Categories
The DB700 Series Deadbolts are designed for light to heavy-duty commercial door applications where security and durability are essential. Built with a full 1-inch throw bolt and a robust cylindrical design, these deadbolts deliver dependable protection for offices, retail spaces, and institutional buildings.The DB700 Series can be keyed to match LHV or LSV locksets, allowing facilities to maintain a convenient single-key system across doors. With a reversible design and a standard commercial backset, these deadbolts install easily on most commercial doors while providing consistent and secure locking performance.
ANSI A156.5 commercial deadbolt certification
Full 1-inch throw bolt for enhanced security
Compatible with LHV and LSV locksets
Single and double cylinder models available
Schlage “C” keyway cylinder
Non-handed / reversible installation
Technical Specifications
Product Type
Commercial Deadbolt
Series
DB700 Series
Grade
Grade 1 Commercial Deadbolt
Certification
ANSI A156.5
UL Listing
UL R14897
Application
Commercial Doors
Door Thickness
1-3/4 in
Backset
2-3/4 in
Bolt Throw
1 in Deadbolt
Cylinder Type
Schlage “C” Keyway
Keying
Schlage 6 Pin Keyed
Keys Included
Six Pin Nickel Plated Keys
Strike Plate
1-1/8 in × 2-3/4 in Strike
Handing
Non-Handed / Reversible
Models
DL-DB751 (Single Cylinder), DL-DB760 (Double Cylinder)
Warranty
1 Year Mechanical and Finish
Finish Options
US26D, BLK
