TC7000 Series Grade 1

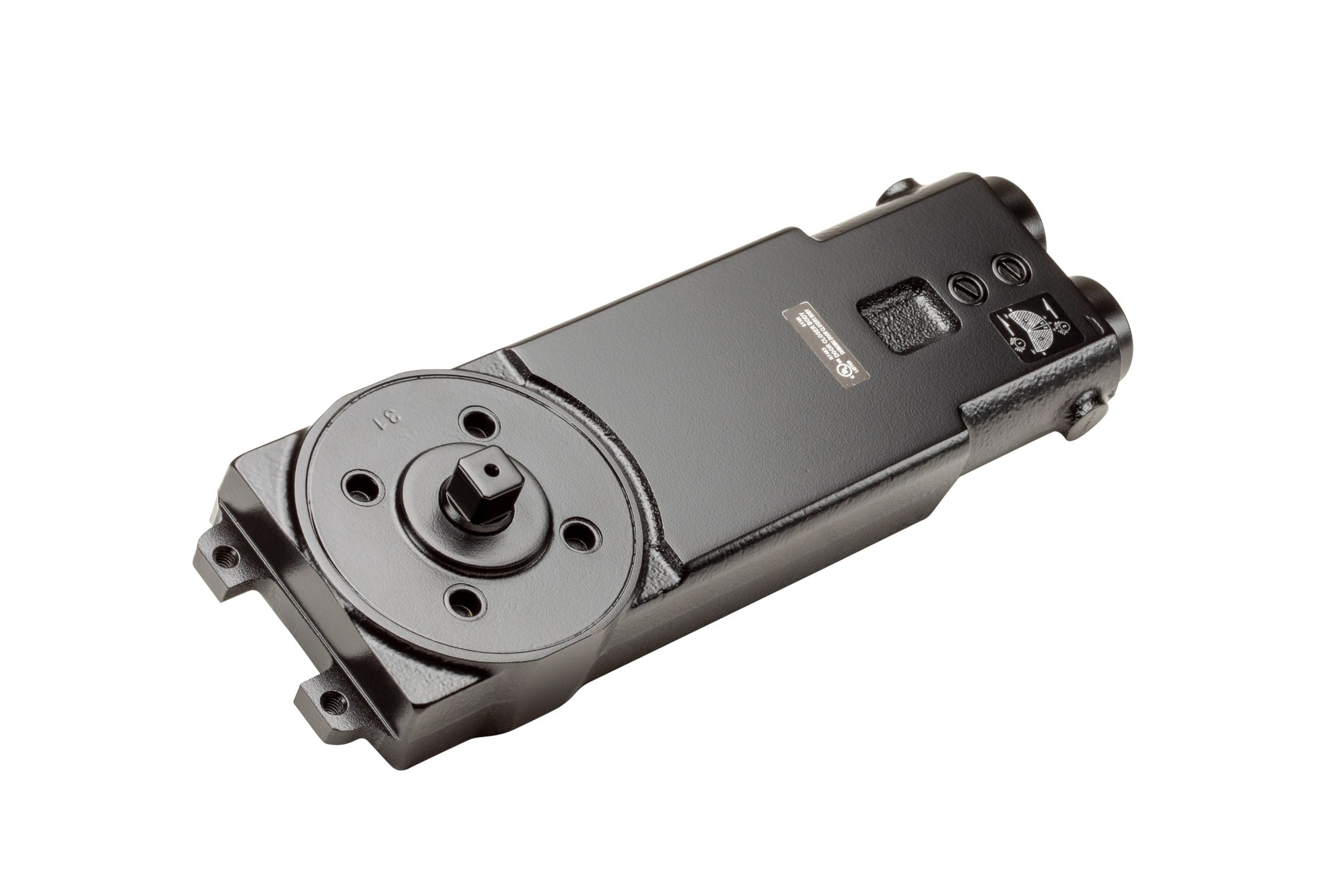

The TC7000 Series Grade 1 Concealed Door Closer is a compact overhead closer designed for aluminum door frames, offering a discreet installation with reliable hydraulic door control.
Browse Categories
The TC7000 Series Door Closer is a compact overhead concealed closer designed for applications where aesthetics and performance are equally important. Installed inside the door frame, it provides a clean, hidden appearance while delivering dependable door control for commercial environments.
Designed for aluminum door frame installations, the TC7000 Series is center-pivoted for single and double acting doors. It offers multiple spring tension options to accommodate different door sizes and weights. With temperature-sensitive hydraulic fluid and adjustable closing and latch speeds, the TC7000 ensures consistent and smooth door operation across a wide range of conditions.
Compact concealed overhead door closer design
Durable cast iron housing with high tensile steel camshaft and pistons
Adjustable latch and closing speed valves
Adjustable spring tension sizes 2–5
Designed to fit inside aluminum headers or transom bars
Suitable for single and double acting doors
Technical Specifications
Closer Type
Overhead Concealed Door Closer
Series
TC7000 Series
Grade
Grade 1 Commercial Door Closer
Body Material
Cast Iron Housing
Internal Components
High Tensile Steel Camshaft and Pistons
Spring Tension
Adjustable Sizes 2–5
Speed Control
Independent Latch and Closing Speed Valves
Mounting Type
Concealed Overhead Installation
Frame Requirement
Aluminum Header or Transom Bar
Minimum Frame Size
1 3/4 in × 4 in
Door Type
Single and Double Acting Doors
Hold Open Options
Hold Open or Non-Hold Open
Swing Options
90° or 105°
Pivot Compatibility
OHC, AE, GE Pivot Sets
Certifications
UL Listed, ANSI A156.2 Grade 1
ADA Compliance
Adjustable Models TC7010, TC7011
