Hollow Metal Doors
6 Panel Doors

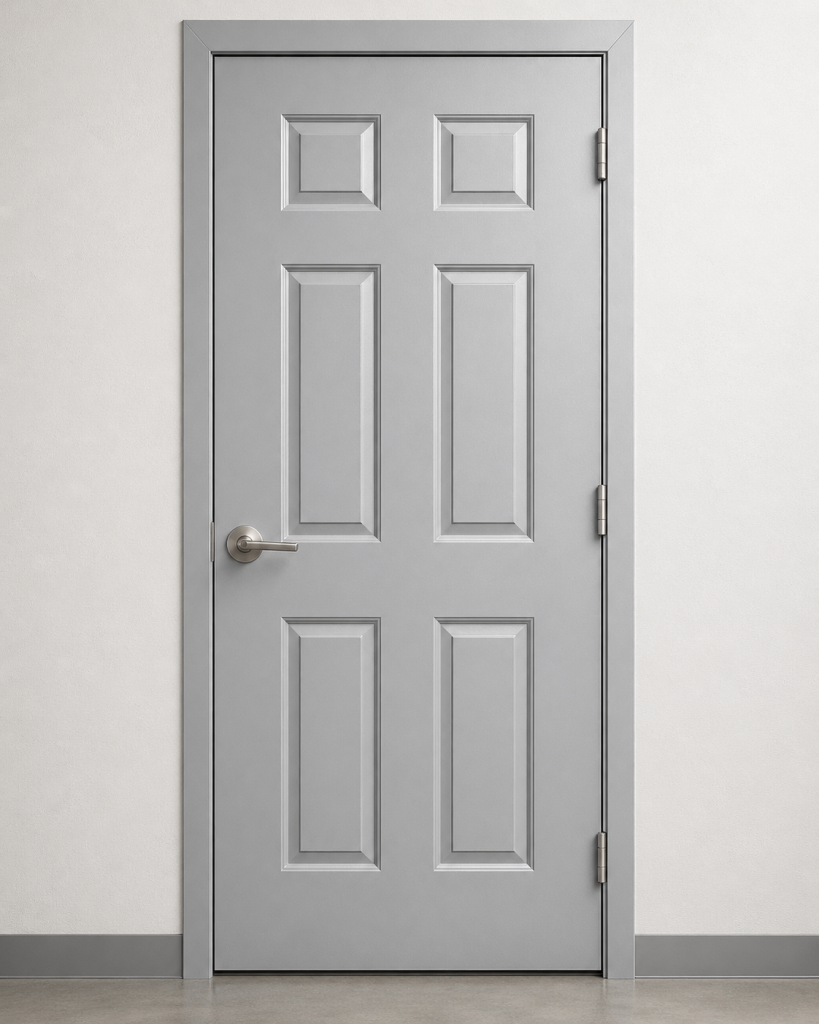

6 panel hollow metal doors with an embossed face, available in 16 & 18 gauge galvanized steel with a 3-hour fire rating.
Gauge16, 18
Fire ratingUp to 3 hr
Thickness1¾"
Heights6'8" to 8'0"
- Next-day shipping nationwide
- UL10 B/C · NFPA 252
- Stocked in Charlotte, NC
Specifications
| Gauge | 16, 18 |
|---|---|
| Core | Polystyrene |
| Thickness | 1¾" |
| Panel Design | 6-panel embossed face |
| Material | Galvanized Steel A40/G90 (stainless optional) |
| Heights | 6'8", 7'0", 8'0" |
| Widths | 2'0" – 4'0" |
| Fire Label | 3hr / PP / S |
| Handing | Reversible |
Built In
- CNC flexible manufacturing for consistent panel depth
- Prime painted with baked-on two-stage epoxy resin
- Rim exit device reinforcement on blank edge
- Automatic painting line
- Closed hinge cavity
Build Your Part Number
Send us a part number and we can quote faster.
Format: HM-[gauge]G6P-[hinge]-[size][prep]
Example
HM-18G6P-SC-3070BR
Gauge · Hinge · Size · Prep
6 Panel Doors FAQ
What gauge are your six panel hollow metal doors?
Six panel doors come in 16 and 18 gauge galvanized steel with an embossed raised panel face.
What fire rating do six panel doors carry?
Up to 3 hours, labeled 3 hr / PP / S.
What sizes are available?
Widths from 2'0" to 4'0" and heights of 6'8", 7'0" and 8'0", all 1-3/4" thick.
Are six panel doors handed?
No. They are non-handed and reversible. Check our door handing chart to confirm the hand of your opening.
What core options are available?
Polystyrene is standard. Honeycomb core is also available.
Which hinge locations are available?
Ceco, Curries, Mesker, Pioneer and Steelcraft hinge locations, with Steelcraft as the stocking default.
Need 6 Panel Doors?
Contact our team for pricing, lead times, and custom configurations.
