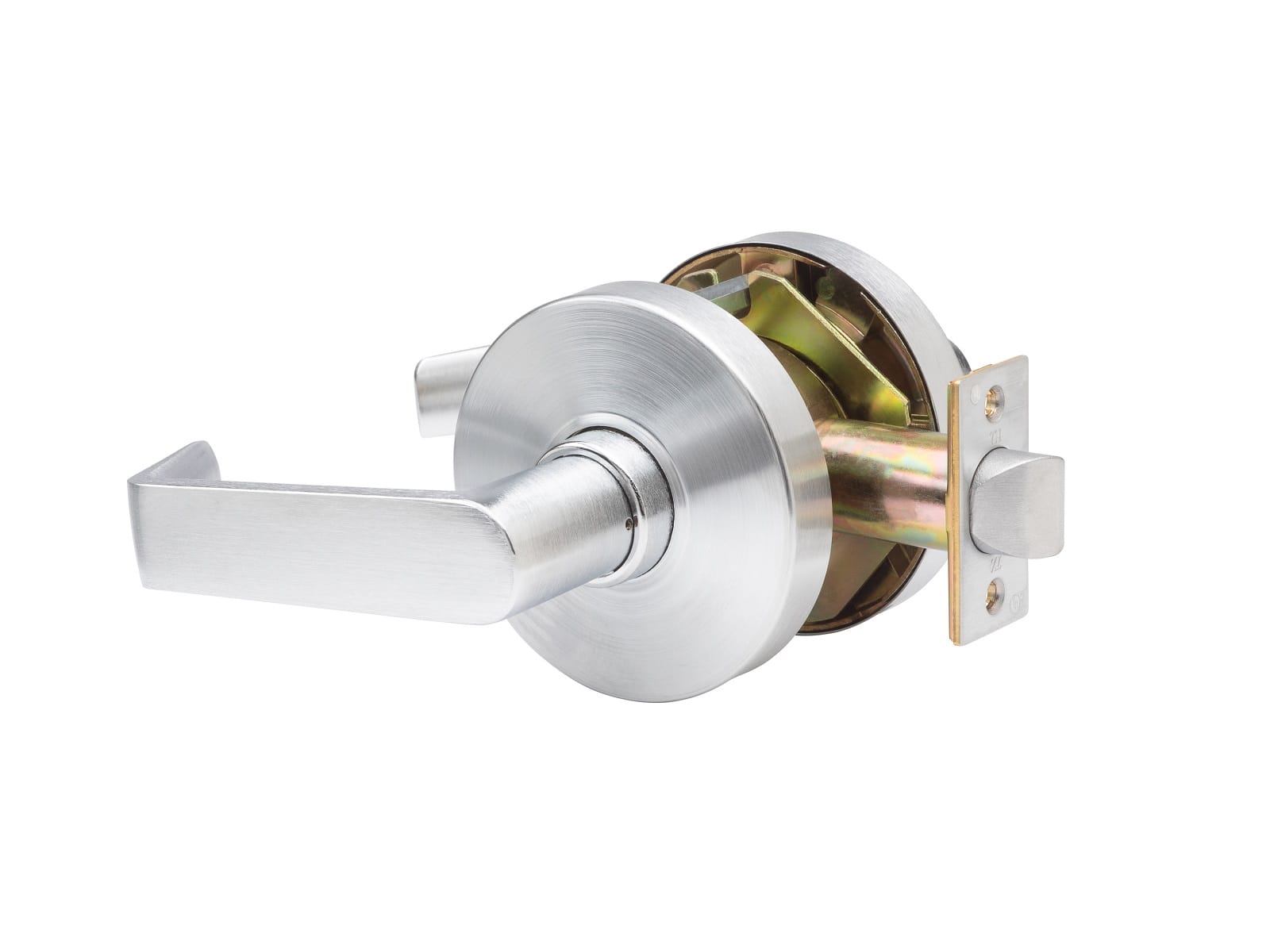

Commercial LHV Series Grade 1 Lever
The LHV Series Grade 1 Cylindrical Lever is a heavy-duty commercial lockset designed for durability, security, and ADA-compliant access in high-traffic environments.
Browse Categories
The DL-LHV Series Cylindrical Leversets are engineered for demanding Grade 1 commercial applications, providing reliable security and long-term durability. Designed with a solid cylindrical construction and ADA-compliant lever operation, these locksets deliver dependable performance in commercial buildings, offices, and institutional environments.
The LHV Series features a free-wheeling clutch mechanism that helps protect the internal components from vandalism and extends the life of the lockset. Compatible with standard cylindrical lock preparations, it offers easy installation and flexible keying options with a Schlage “C” keyway cylinder.
ANSI/BHMA Grade 1 commercial cylindrical lever
ADA compliant lever design
Durable free-wheeling clutch mechanism for vandal resistance
Schlage “C” keyway cylinder with 6-pin keying
Non-handed / reversible installation
Compatible with standard cylindrical lock door preparation
Technical Specifications
Product Type
Commercial Cylindrical Lever Lockset
Series
DL-LHV Series
Grade
ANSI/BHMA A156.2 Grade 1
Application
Heavy Duty Commercial Doors
Backset
2-3/4 in
Cylinder Type
Schlage “C” Keyway
Keying
Schlage 6-Pin Keyed
Keys Included
2 Nickel Plated Keys
Latch Bolt
5/8 in Projection Stainless Steel
Bore Size
2-1/8 in Door Bore
Door Preparation
Fits 161 Prep
Strike Plate
ANSI 1-1/4 in × 4-7/8 in Strike
Handing
Non-Handed / Reversible
Clutch Function
Lever Rotates Without Unlatching Lock
Warranty
1 Year Mechanical and Finish
Finish
US26D, USB10
