TC400 / TC500 Series
The TC400 / TC500 Series Grade 1 Door Closers are heavy-duty commercial closers designed for architectural, institutional, and commercial applications, delivering reliable rack-and-pinion performance and ADA-compliant operation.
Browse Categories

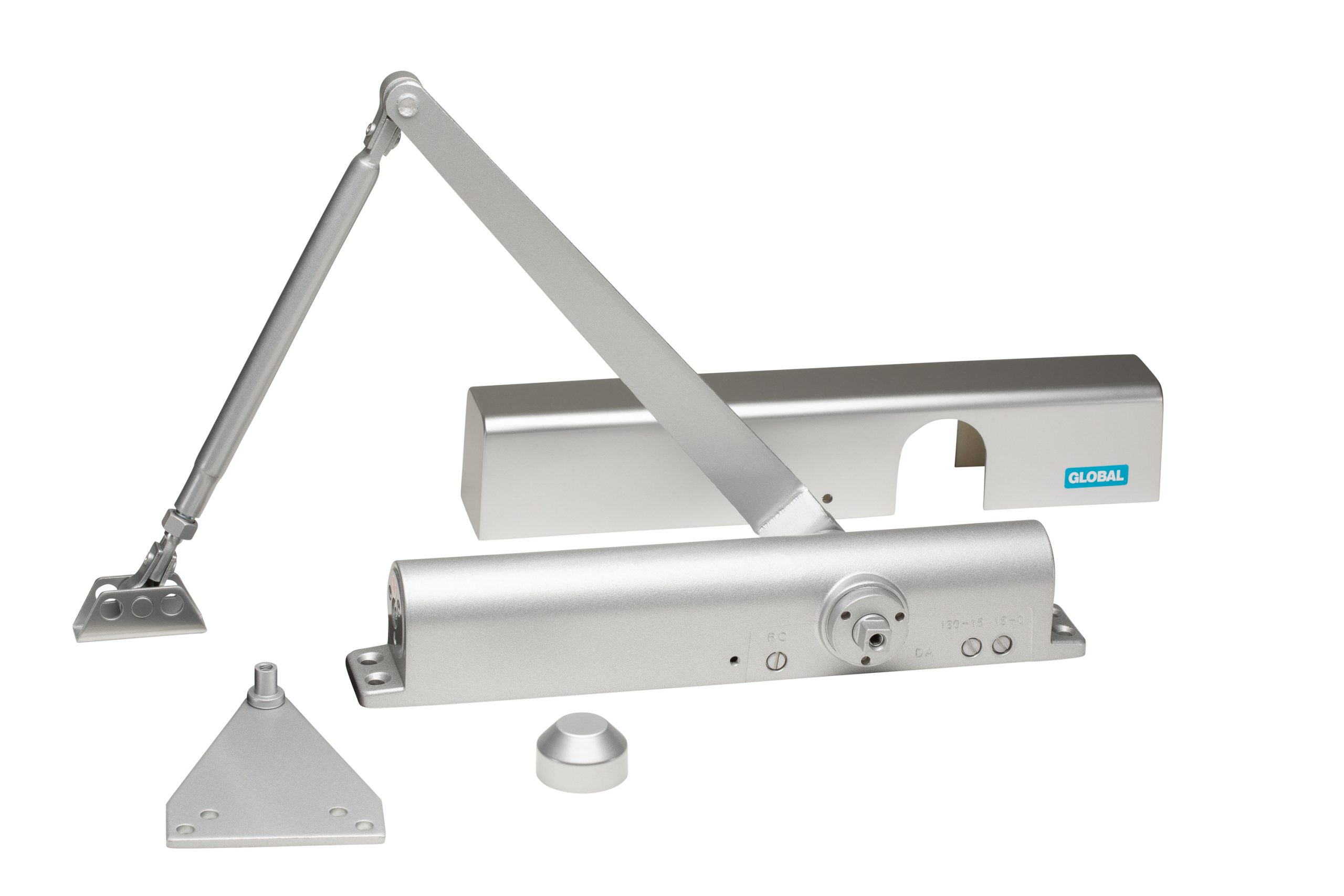

The TC400 and TC500 Series Door Closers are heavy-duty commercial closers engineered for demanding architectural, institutional, and commercial door applications. Built with a durable aluminum alloy body and rack-and-pinion mechanism, these closers provide smooth and reliable door control for both new construction and renovation projects.
The TC400 Series features a slim narrow cover design, while the TC500 Series includes a full cover. With adjustable spring power models and multiple mounting options, these closers offer versatile installation and performance. Both series include independent regulating valves for sweep, latch, and backcheck control and are fully compliant with ADA and ANSI/BHMA standards.
Heavy-duty aluminum alloy body
Reliable rack and pinion design
Non-handed / reversible installation
Built-in backcheck
Adjustable spring power models
Tri-pack mounting options
Technical Specifications
Closer Type
Rack and Pinion Door Closer
Series
TC400 / TC500 Series
Grade
Grade 1 Commercial Door Closer
Body Material
Aluminum Alloy
Handing
Non-Handed / Reversible
Backcheck
Built-In Backcheck
Spring Power Model 411
Adjustable Size 1–4
Spring Power Model 512
Adjustable Size 2–6 (ADA Barrier Free)
Speed Control
Adjustable Sweep, Latch, and Backcheck Valves
Mounting Type
Regular Arm, Top Jamb, Parallel Arm (Tri-Pack)
Mounting Hardware
Wood Screws and Machine Screws Included
Cover Type
Slimline Cover (TC400) / Full Cover (TC500)
Warranty
5 Year Mechanical Warranty
Finishes Available
Aluminum (AL), Duranodic (DU)
Certifications
ANSI/BHMA A156.4 Grade 1, UL Listed R13255
ADA Compliance
ADA Barrier Free Model Available
