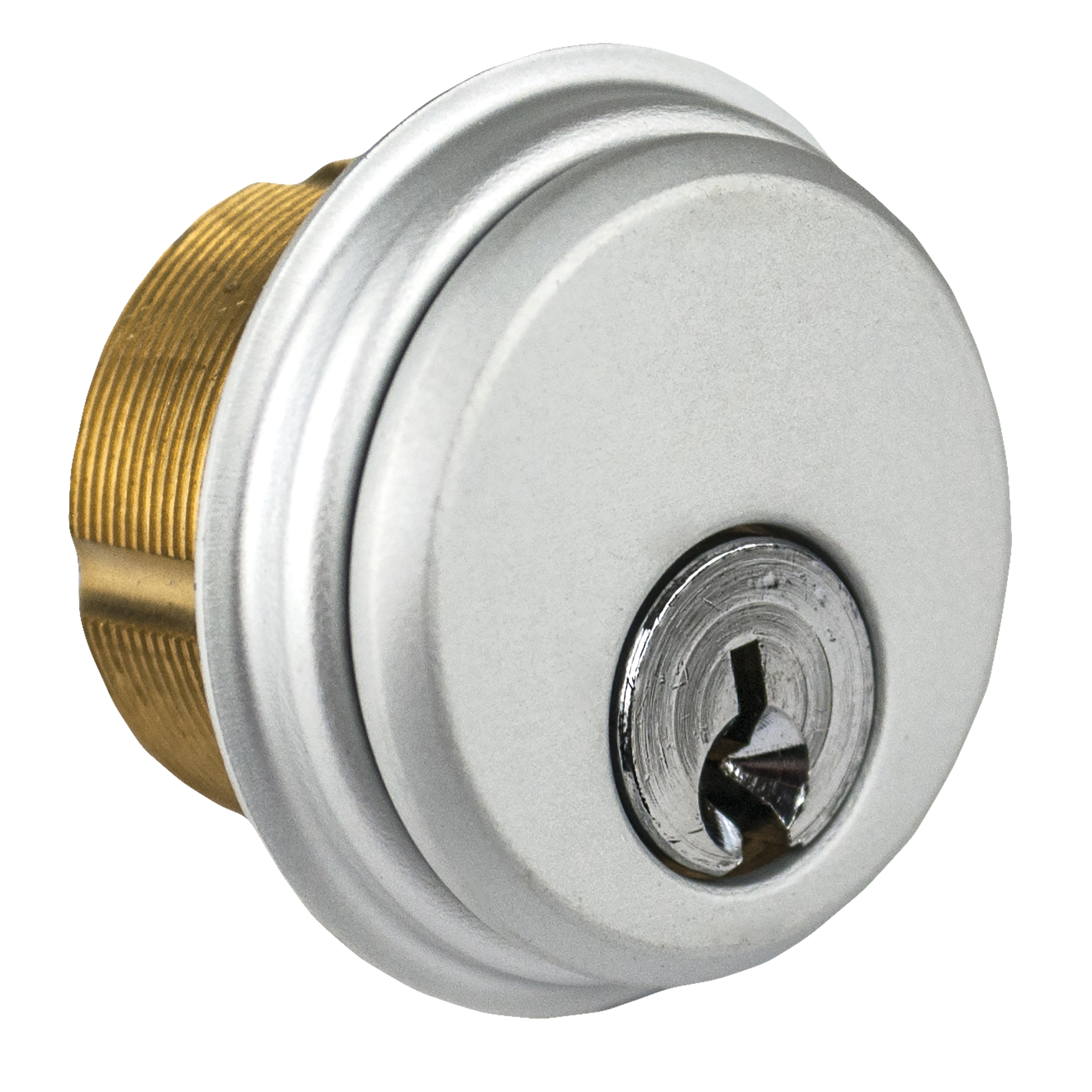

TH1100 Mortise Cylinders
TH1100 Mortise Cylinders provide secure key control and compatibility for mortise lock and storefront door hardware systems.
TH1100 Mortise Cylinders are designed for aluminum storefront doors and mortise lock applications, providing dependable key control and smooth operation. These cylinders are available in mortise and rim configurations, making them compatible with a wide range of commercial door hardware systems.
Equipped with 5-pin Schlage “C” keyway cylinders, the TH1100 series ensures reliable security and easy key management. Each cylinder includes an Adams Rite style cam, allowing seamless integration with most storefront mortise lock mechanisms. Various keying options and finishes are available to match different installation requirements and hardware finishes.
Compatible with mortise and rim lock applications
5-pin Schlage “C” keyway cylinders
Includes Adams Rite style cam for storefront locks
Multiple keying options available
Durable brass or zinc construction
Available with thumbturn and oversized thumbturn options
Technical Specifications
Product Type
Mortise / Rim Cylinder
Series
TH1100 Cylinders
Application
Storefront Mortise Lock Systems
Cylinder Type
5 Pin Schlage “C” Keyway
Cylinder Length
1 in
Cam Type
Adams Rite Style Cam
Keying Options
Keyed Different (X1), Keyed Alike (X1KA), Keyed Alike in Pairs (X2)
Models Available
TH1100-BC, TH1100-ZC, TH1100-RC, TH1100-DUM, TH1100-BT, TH1100-ZT, TH1100-ZTO
Mounting
Mortise or Rim Cylinder Installation
Finishes
AL, DU, BC Brass, ZC Zinc, BT Brass Thumbturn, ZT Zinc Thumbturn, ZTO Oversized Thumbturn
