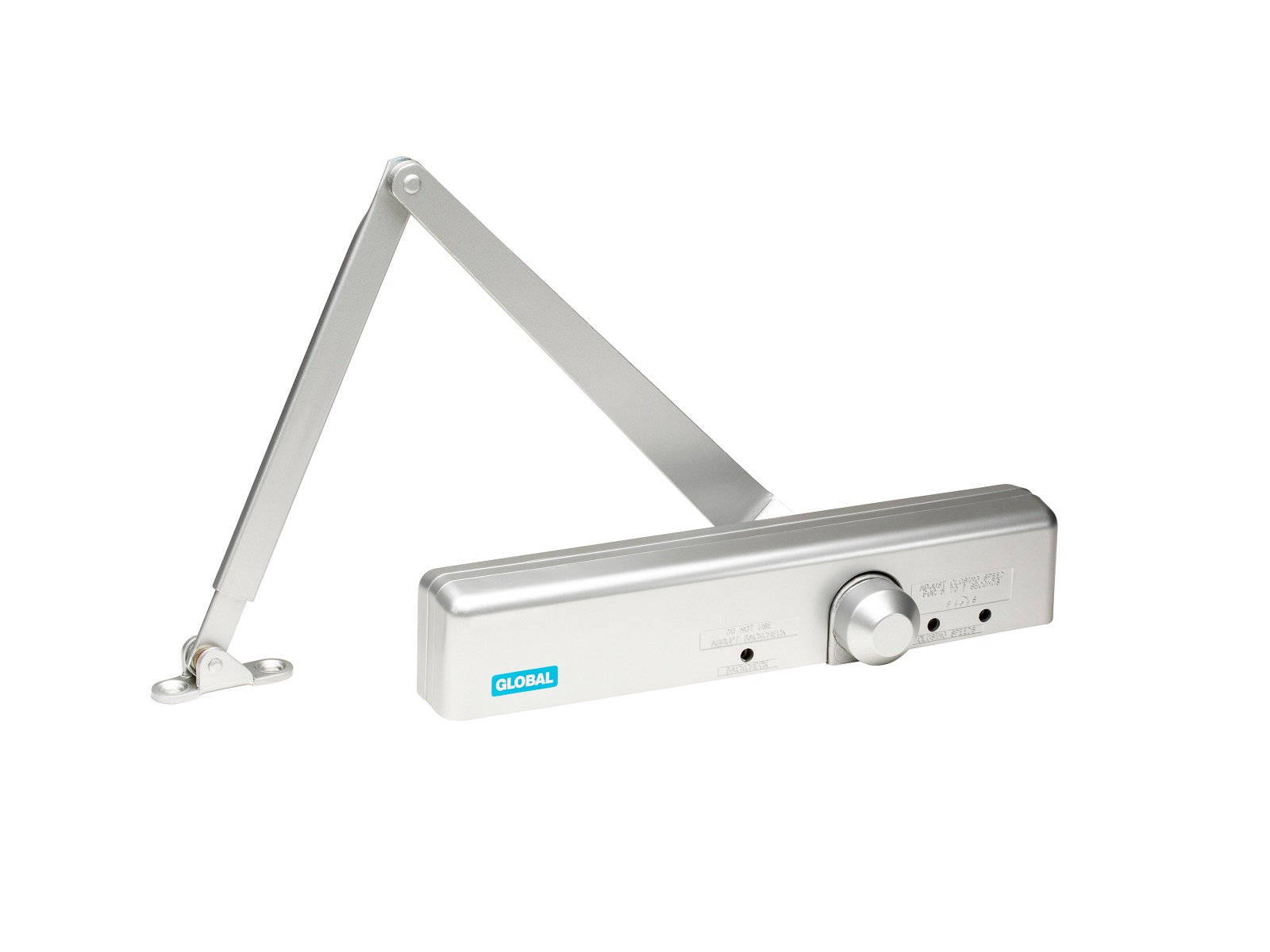

TC4361 Series Grade 1
The TC4361 Series Grade 1 Door Closer is a heavy-duty commercial door closer designed for architectural, institutional, and high-traffic applications with adjustable spring power and ADA compliance.
Browse Categories
The TC4361 Series Door Closer is engineered for heavy-duty commercial, architectural, and institutional door applications. Ideal for both new construction and retrofit installations, this Grade 1 closer provides reliable performance in demanding environments.
Featuring a durable aluminum alloy body with a slimline cover, the TC4361 offers adjustable multi-size spring power from size 1 through 6, allowing the closer to accommodate a wide range of door weights and sizes. Independent valves allow precise control of sweep, latch, and back-check speeds, ensuring smooth and controlled door operation.
The closer is tri-packed for multiple mounting options, including regular arm, top jamb, and parallel arm installation. Closers equipped with non-hold open arms are UL listed for “A” label fire doors and fully comply with ADA and ANSI/BHMA standards for opening force requirements.
Durable construction for long-lasting commercial use
Adjustable spring power sizes 1-6
Independent sweep, latch, and back-check control valves
Tri-packed mounting (regular, top jamb, parallel arm)
ADA compliant with UL fire door listing
Durable aluminum alloy body with slimline cover
Technical Specifications
Product Type
Commercial Door Closer
Length of Closer Body
9 3/4 in
Horizontal Mounting Holes
9 1/16 in
Vertical Mounting Holes
3/4 in
Height of Closer Body
1 3/4 in
Projection from Door
2 7/8 in
Series
TC4361 Series
Application
Heavy Duty Commercial and Institutional Doors
Body Material
Aluminum Alloy
Cover Type
Slimline Cover
Spring Power
Adjustable Sizes 1-6
Mounting Options
Regular Arm, Top Jamb, Parallel Arm (Tri-Packed)
Control Valves
Sweep, Latch, Back-Check
Handing
Non-Handed / Reversible
Screws
Wood and Machine Screws Included
Certification
UL Listed R13255
Standards
ANSI A156.2 Grade 1, ADA Compliant
Warranty
5 Year Mechanical Warranty
Finish Options
Aluminum (AL), Duranodic (DU)
