Hollow Metal Doors & Frames
Imperial Door & Frame manufactures hollow metal doors and frames for commercial applications — a one-stop shop with fast ship times and a wide range of designs, sizes, performance levels, and specifications.
Why Imperial Door & Frame
Imperial Door & Frame delivers high-performance hollow metal doors and frames with a wide range of specifications to meet diverse project requirements. Our goal is to be your one-stop source, combining reliable stock programs with custom fabrication options tailored to your exact needs. Most standard orders ship within 1–2 business days.
We are committed to supporting every stage of your project—from standard openings to fully customized solutions—providing strength, quality, and consistency for commercial applications.
- CNC Flexible Manufacturing
- Automatic Painting Line
- Digital Bending & Punching
- Robotic Welding
- Bespoke Size & Design Freedom
- Fabrication Stability & Quality

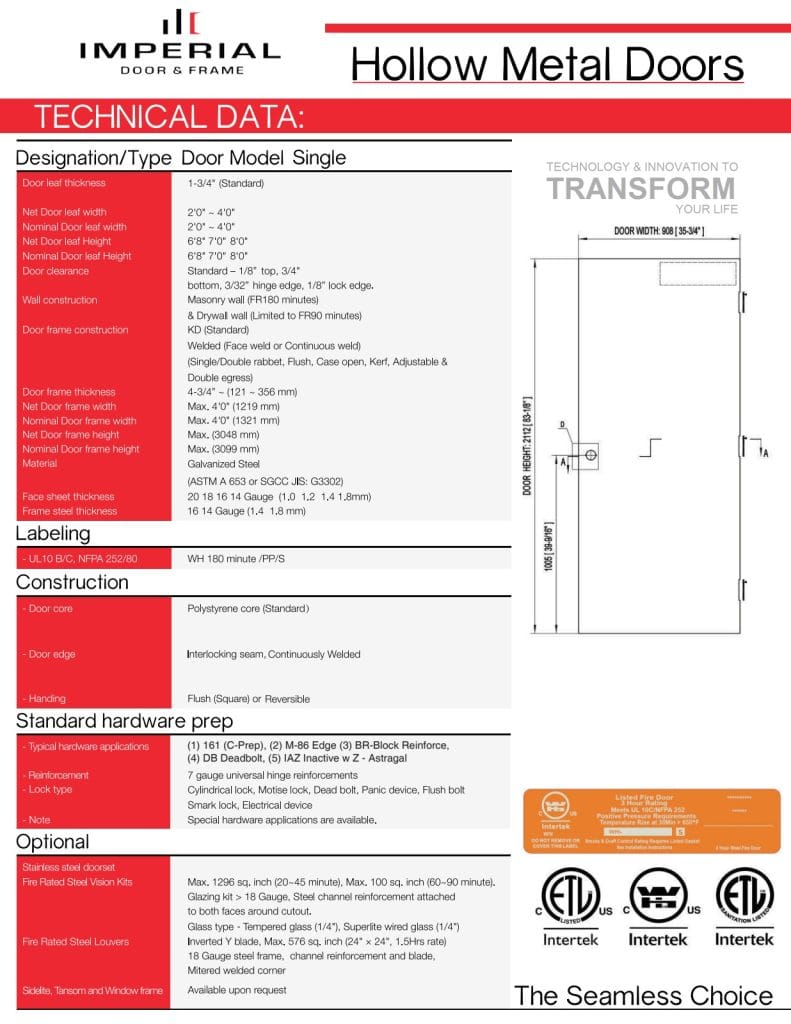

Hollow Metal Doors
Commercial-grade steel doors available in 16 and 18 gauge galvanized steel with polystyrene core. All stocking doors are square edge, reversible, with lock seam edge construction. Seamless and interlocking welded construction ensures structural integrity and long-term performance.
Doors carry a 3-hour WHI fire rating, meeting UL 10C / NFPA 252 positive pressure requirements with Intertek certification. A40 galvanized steel is standard; stainless steel is available. All doors are prime painted with a baked-on resin finish.
Universal hardware reinforcements include 7-gauge steel hinge reinforcement (4-1/2″ or 4″), 14-gauge lock reinforcement, and closer reinforcement on both sides.
Stocking Hinge Locations
Steelcraft (SC)
Curries (CU)
Mesker (ME)
Pioneer (PI)
Ceco (CE)

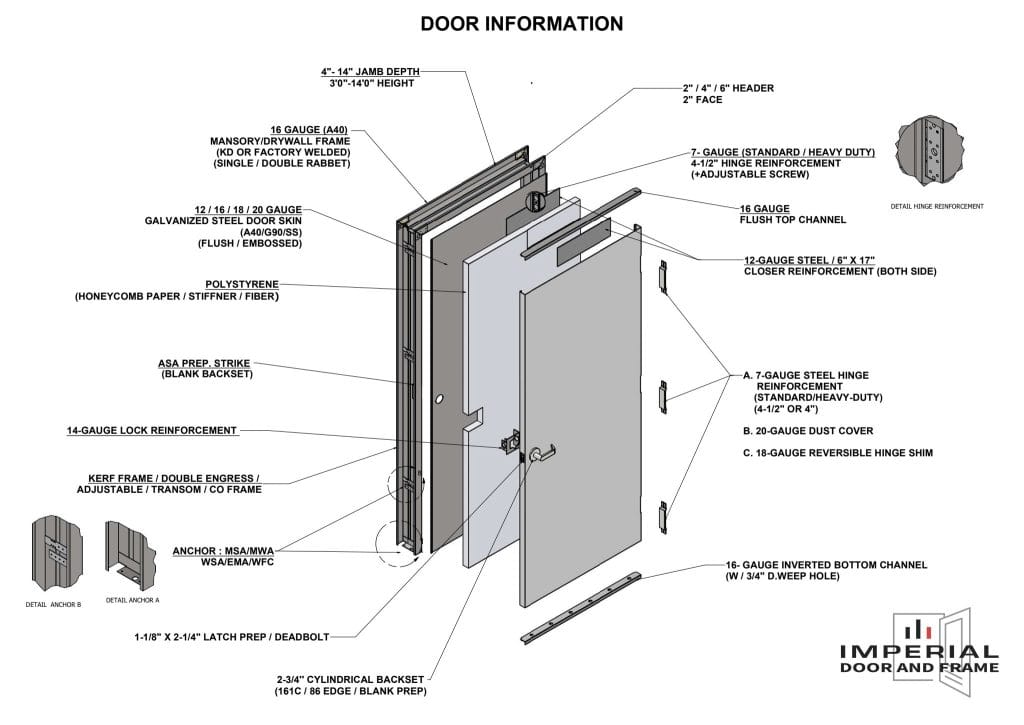

Hollow Metal Frames
16-gauge galvanized steel frames available in masonry and drywall configurations, KD (knock-down) or factory welded, with single or double rabbet options. Jamb depth ranges from 4″ to 14″, heights from 3′-0″ to 14′-0″, with 2″ / 4″ / 6″ header options and 2″ face.
Standard features include 7-gauge hinge reinforcement (4-1/2″), 14-gauge lock reinforcement, flush or embossed top channel, and 16-gauge inverted bottom channel with 3/4″ diameter weep holes.
Frame Features
- Flush or embossed top channel
- Compression anchors (drywall)
- MSA / MWA masonry wire anchors
- Countersunk hole drywall anchors
- 18-gauge reversible hinge shim
- 20-gauge dust cover
- Closer reinforcement on both sides
- Inverted bottom channel with weep holes
- Adjustable screw feature
Custom Fabrication Options
Enhance your hollow metal door assemblies with factory-prepared components. Some items are special order only — contact us for availability and lead times.
Steel Louvers
18-gauge blade thickness. Available for steel and wood doors. Order size = door cutout minus 5/32″ (4 mm). Inside and outside mounting options.
Vision Lite Kits
Tempered glass vision kits with inside and outside frame options. Available in multiple sizes — visible lite area 2″ less than overall size. Secure and non-secure side configurations.
Custom size doors and frames
Lock seam edge construction, inverted bottom channels, adjustable screws, and reversible hinge shims for precise field fitment.
Welded frames
7-gauge hinge reinforcement (4-1/2″ or 4″), 14-gauge lock reinforcement, closer reinforcement on both sides, and blank bracket options (standard/heavy-duty).

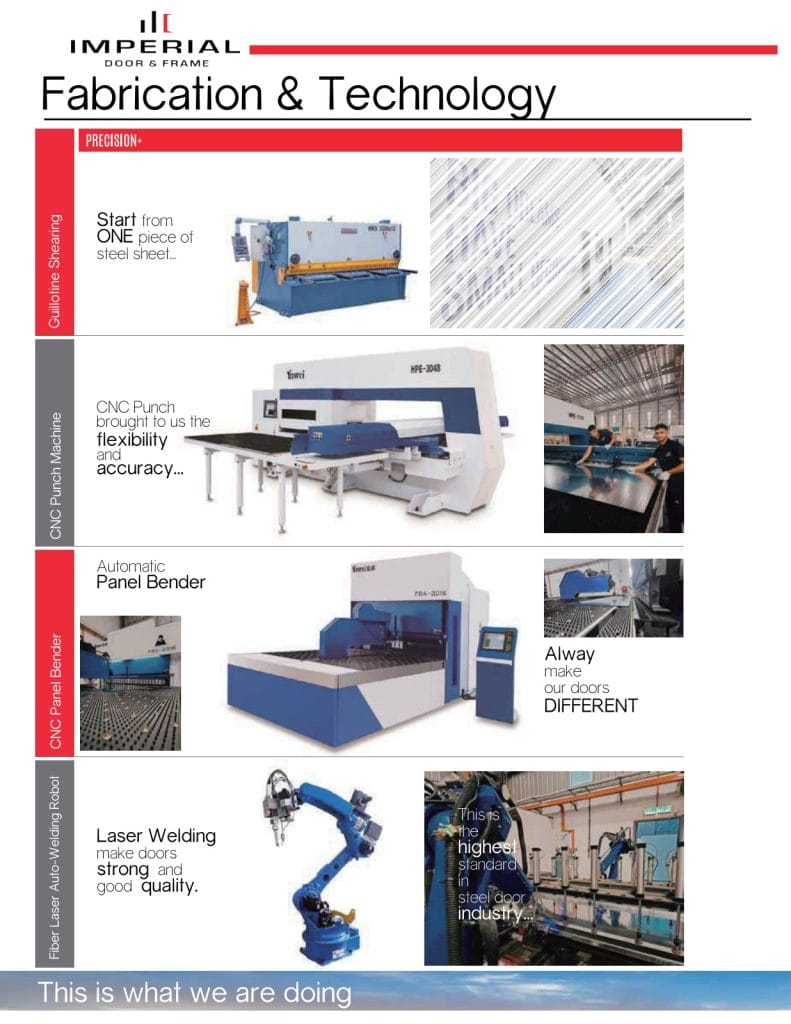

Fabrication & Technology
Imperial Door & Frame utilizes advanced CNC manufacturing, robotic welding, and automatic finishing systems to deliver consistent quality, design freedom, and fabrication stability across every product.
Guillotine Shearing
Precision sheet cutting for consistent panel sizing
CNC Punch
Computer-controlled punching for accurate hardware prep
Automatic Panel Bender
Digital bending for fabrication stability and quality
Embossing
Surface texturing and profile creation
Laser Welding
Seamless welded construction for structural integrity
Laser Cutting
Precision cutting for bespoke sizes and design freedom
CNC Press Brake
Digital bending and punching for frame profiles
Automatic Powder Coating & Painting Line
Factory-applied finish with colorful choice options
Handing, Finishes & Certifications
Door Handing Configurations
Single Doors
RH (Right Hand) and LH (Left Hand) configurations with lock and strike jamb identification from hinge side.
Double Doors (Pairs)
Equal and unequal pairs with RHRB and LHRB active leaf designations and inactive leaf identification.
Double Egress
Opposing-swing door pairs for corridor and egress path applications where code requires traffic flow in both directions.
Communicating Openings
Side-by-side door configurations with RH and LH astragal designations for connecting rooms.
Performance & Finishes
All doors and frames are prime painted with a factory-applied baked-on resin finish. An automatic powder coating and painting line offers colorful choices to meet your design requirements. Custom color matching is available upon request.
Fire Rating & Certification
3-hour fire rated steel doors and frames certified to NFPA 252 and UL 10C positive pressure requirements. Intertek WH US + C Mark for Category A (Doors) and Category C (Proprietary Frames). Temperature rise at 30 minutes exceeds 650°F. Smoke and draft control rating with listed gasket.
