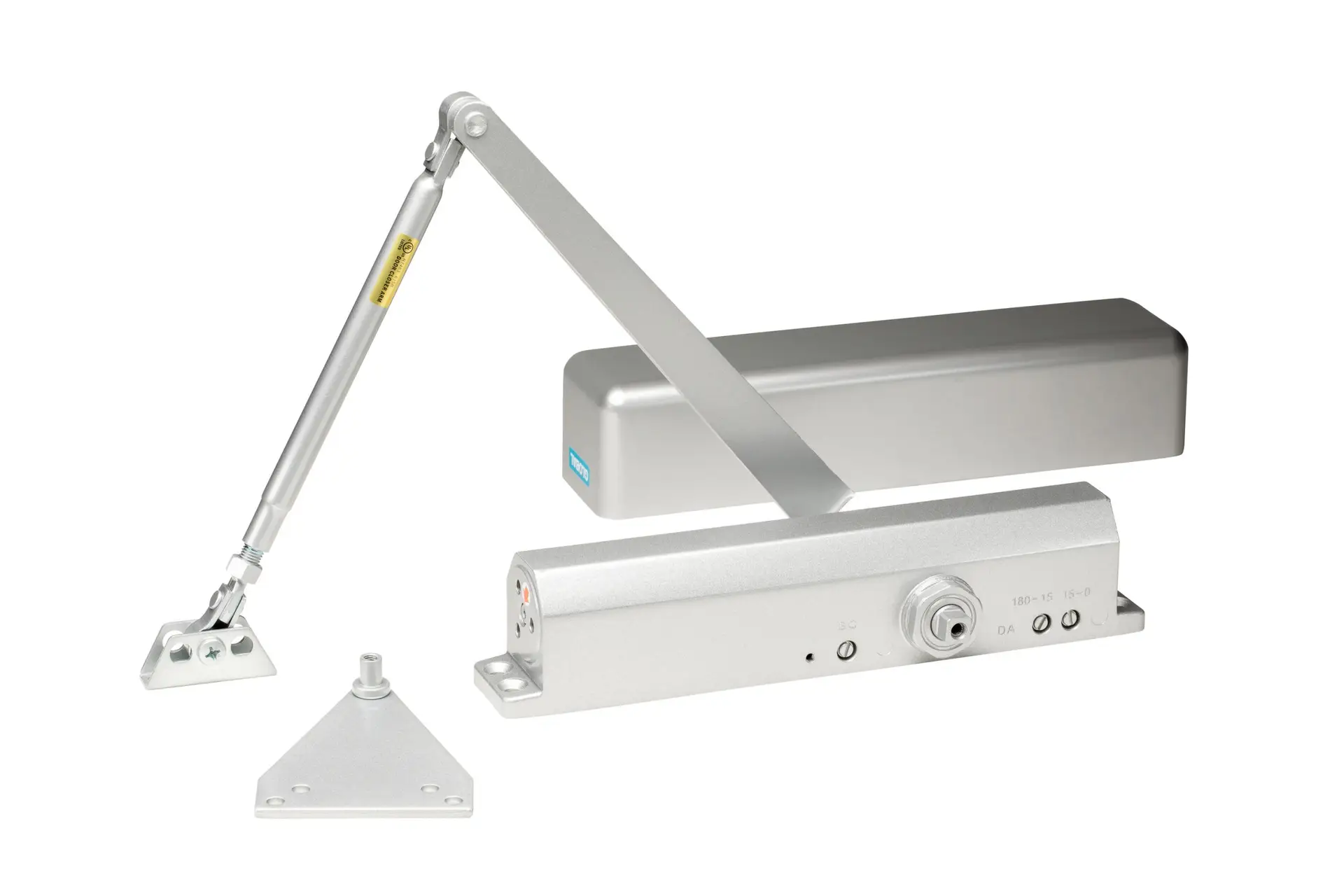

TC600 Series Grade 1
The TC600 Series Grade 1 Door Closer is an economical full-cover commercial door closer designed for reliable performance in commercial, architectural, and institutional applications.
Browse Categories
The TC600 Series Door Closer is a cost-effective Grade 1 commercial closer designed to provide dependable door control for commercial, architectural, and institutional environments. Built with a durable aluminum alloy body and a full protective cover, it offers smooth and reliable operation for both new construction and renovation projects.
With adjustable spring power options and independent regulating valves for sweep, latch, and backcheck control, the TC600 Series delivers precise door performance. It is supplied tri-packed for flexible installation and is fully compliant with ADA and ANSI/BHMA standards, making it suitable for a wide range of commercial door applications.
Durable aluminum alloy body
Non-handed / reversible design
Full protective cover included
Adjustable spring power models
Independent sweep, latch, and backcheck control valves
Tri-pack mounting options
Technical Specifications
Closer Type
Rack and Pinion Door Closer
Series
TC600 Series
Grade
Grade 1 Commercial Door Closer
Body Material
Aluminum Alloy
Handing
Non-Handed / Reversible
Spring Power Model 611
Adjustable Size 1–4
Spring Power Model 612
Adjustable Size 2–6 (ADA Barrier Free)
Speed Control
Adjustable Sweep, Latch, and Backcheck Valves
Mounting Type
Regular Arm, Top Jamb, Parallel Arm (Tri-Pack)
Cover Type
Full Cover
Warranty
5 Year Mechanical Warranty
Finishes Available
Aluminum (AL), Duranodic (DU)
Certifications
ANSI/BHMA A156.4 Grade 1, UL Listed R13255
ADA Compliance
ADA Barrier Free Model Available
Length of Closer Body
11 3/4 in
Horizontal Mounting Holes
11 1/8 in
Vertical Mounting Holes
9/16 in
Height of Closer Body
2 in
Projection from Door
2 7/8 in
